Optical streak Camera

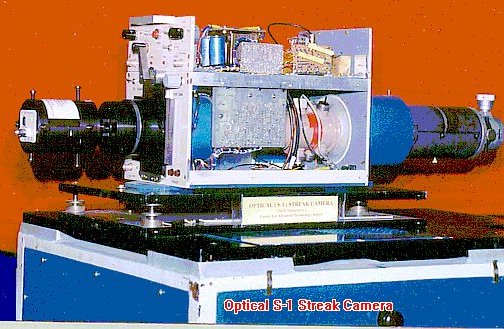

Optical Streak Camera

This camera has been made in collaboration with the General Physics Institute, Moscow, Russia.
Specifications :
Streak Tube :
Streak Tube              :  Static focussing : input slit imaging optics ( PV-100 )

Spectral region          :  300 - 1300 nm ( S-1 )

Streak Tube size         :  30 mm dia

Streak speeds            :  0.35, 2.1, 3, 5, 15 ns / 20 mm

Deflecting plate BW      :  2 GHz

Dynamic range            :  15 - 20 (limited by the CCD camera)

Spatial resolution       :  15 lp/mm

Temporal resolution      :  4 ps

Trigger delay            :  25 ns

Trigger jitter           :  + / - 50 ps

Input trigger            :  >10V / 50 ohm

Photo-cathode size       :  5 mm dia

Photo-cathode material   :  S-1

Phosphor screen          :  P-11

Magnification            :  2.1


Image Intensifier :
Tube size                :  30 mm dia

Photo-cathode            :  S-20

MCP channel size         :  12 x 500 micron

Luminous gain            :  5,000

Image magnification      :  1 : 1

Phosphor screen          :  P-20

Pulsed voltage           :  1.2 kV

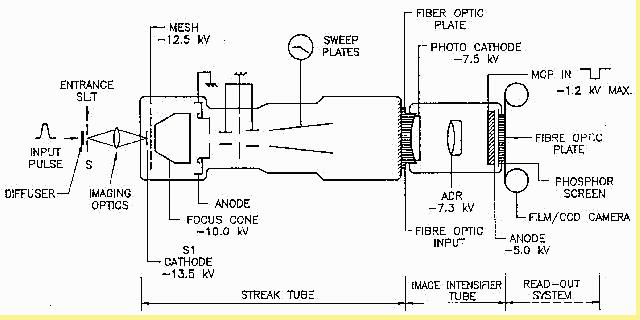

Click here for the schematic of the streak tube.
For more details, contact J.A.Chakera
