Crystal Spectrometer

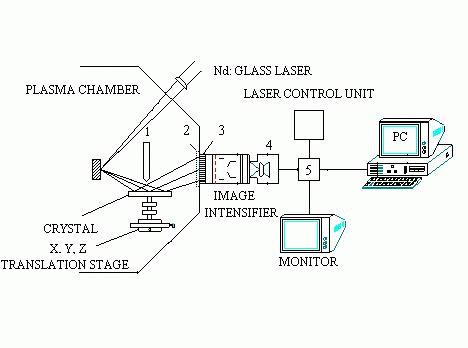

On-line crystal spectrometer : Layout
  • Crystal : Thallium Acid Phthallate, 2d = 2.575 nm, (001) plane.
  • Spectral range : 6 to 10 angstroms (adjustable)
  • Resolution : 20 milli angstroms ( R.P. ~ 400 )
  • Detection : On-line on a CCD camera / Film
  • Spatial resolution : 2-D x-ray images


For more details, contact Vipul Arora
