Power Converters Developed by HVSS

Bipolar Orbit Correction Coil Power Supplies (OCCPS)

These supplies are rated for 20 V / 6 A, CC with a setting resolution of 10 mA. The stability of the supplies is better than 500 ppm. It uses a hybrid power scheme with a series post regulator to achieve the required performance. The power has polarity reversal feature by switching the output using a relay. These supplies can be operated from remote and have all protection features as O/C,O/V, Over Temp and short circuit etc. Total 4 nos of such power supplies have been developed and tested.

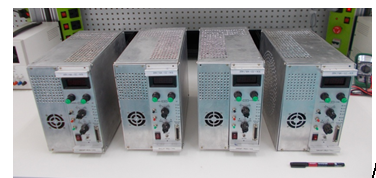

Developed Bipolar Orbit Correction Coil Power Supplies for Microtron (Indus Facility)
