C8051F040 based Data Acquisition and CAN bus based interface card

The card has following features:

  1. Setting of 2 numbers of 12 bit analog and 8 numbers of Digital outputs.

  2. Readback of 8 numbers of analog inputs (12 bits) and 8 numbers of digital inputs.

  3. CAN bus based communication with galvanic isolation with PC or other compatible system.

  4. RS 485 based communication with galvanic isolation with PC or other compatible system.

  5. RTC operation.

The communication with PC can be carried out by installing NI CAN bus PCI card in the PC.

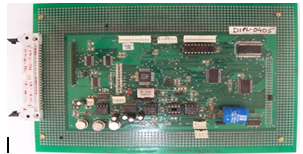

C8051F040 Based Data Acquisition Card with CAN Bus based Interface
C8051F040 Based Data Acquisition Card with CAN Bus based Interface
