Photo Physics Beamline

Introduction

Photophysics beamline is a medium resolution beamline in operation at INDUS-1 synchrotron source, useful for photoabsorption experiments in the UV-VUV region. The beamline is being used extensively for VUV spectroscopy of molecules of current interest in Atmospheric sciences, Astrophysics, Astro-chemistry, Combustion, Plasmas, Semi-conductor etching, Nuclear solvents etc.

The scopes of experiments which can be carried out using photophysics beamline include:

  • Photoabsorption studies of atoms, molecules and radicals in gas phase, condensed phase as well as matrix isolated phase down to 10K.
  •  Reflectivity and fluorescence of solid samples at room and low temperatures.
  • Photochemistry of molecules in excited states consequent of VUV photon absorption

Beamline Details

Acceptance (Angular)

41 mrad (H) x 5.6 mrad (V)

Mirror1

Toroidal mirror (Gold coated) to focus the SR beam on the  entrance slit of the  monochromator

Monochromator

1-m Seya-Namioka monochromator with gold coated spherical grating (2400 g/mm).

Mirror 2

Toroidal mirror (gold coated) to refocus the beam to a sample at a distance of one meter

Spot size

1mm(H)×1mm(V)  ( Solid samples)
 6mm(H)×8mm(V)  (for gas phase)

Photon flux

108 Photons/sec (Typical)

Wavelength Range

500 – 3500 Å (for solids);
1100 – 3500 Å (for gas phase)

Detection

Sodium salicylate coated window with VUV to visible sensitive photomultiplier.

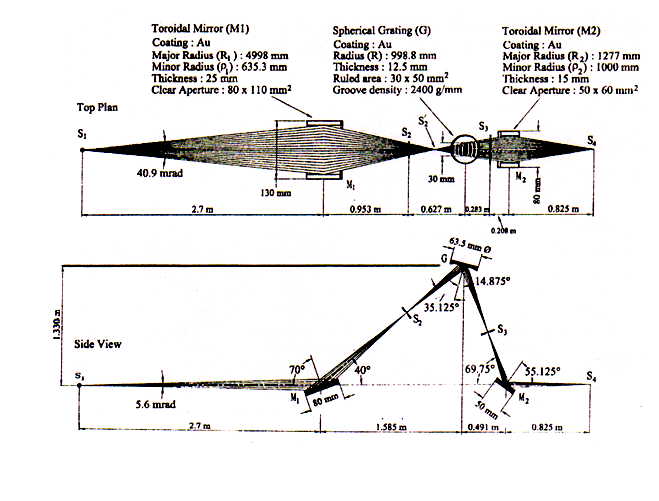

Optical Layout of the Beamline
Optical Layout of the beamline


Mechanical Layout of the Beamline

Mechanical Layout of the beamline


Experimental Facilities Available

  1. Gas phase photo-absorption spectroscopy
  2. Experimental set up for solid samples
  3. Low temperature (Matrix Isolation) spectroscopy

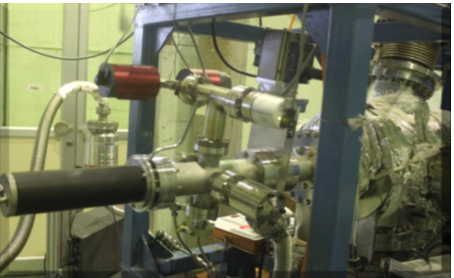

Gas phase absorption cell
Schematic of MIS setup
Gas phase absorption cell
Schematic of MIS setup


Photophysics beamline at Indus - 1
Photophysics beamline at Indus-1

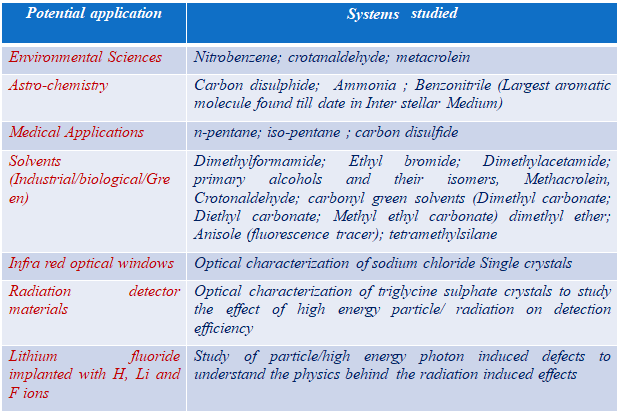

Some Research Studies being pursued

Experimental programs on photophysics beamline include VUV spectroscopy of polyatomic molecules in gas and solid phase, study of temperature dependent optical properties of solids, evaluation of detectors required for the inverse photoemission studies, and optical properties of irradiated laser materials. A representative few scientific issues addressed in the study of electronic spectroscopy of molecules are:
  • Electronic excitations up to and beyond the first ionization potential.
  • Change in geometry and vibrational frequencies of excited states.
  • Valence/Rydberg nature of excited states and assignment of Rydberg series using quantum defect analysis
  • Assignment of vibrational progressions arising from fundamental/ combination modes accompanying the valence /Rydberg transitions including hot band contributions arising from low lying vibrational/ torsional modes.
  • Study of vibronic coupling, charge transfer excitations and Renner-Teller effects.
  • Comparative studies of excited electronic state structure in isotopically substituted, iso-electronic and substituent molecules.
  • Quantum chemical calculations for vibrational frequencies and excited state energies of molecules using GAMESS and Gaussian.

Recent Ph.D theses which include experimental work carried out on photophysics beamline (2013-14).

  1. Shri. M. Maniraj, IUC-DAE-CSR
    “Unoccupied electron states probed by inverse photoemission spectroscopy and related studies”,
    submitted to DAVV, Indore.

  2. Shri. Param Jeet Singh, AMPD, BARC
    "Synchrotron radiation based VUV spectroscopy of some polyatomic molecules of environmental interest”,
    submitted to HBNI, Mumbai.

  3. Shri. Anuvab Mandal, HBNI student, BARC
    " Electronic state spectroscopy of some environmentally important molecules using synchrotron radiation”,
    submitted to HBNI, Mumbai.

results

1.Electronic state spectroscopy of di-iodomethane (CH2I2)

The electronic absorption spectrum of diiodomethane in the 3.7-11.8 eV region is investigated. The absorption bands in the 3.7-6.2 eV region are attributed to valence transitions, while the VUV spectrum (6.2-11.8 eV) is dominated by several Rydberg series converging to the first four ionization potentials of CH2I2 corresponding to removal of an electron from the outermost non-bonding orbitals. Rydberg series are assigned based on a quantum defect analysis. TDDFT calculations of excited states support the analysis and help in interpretation of the Rydberg and valence nature of observed transitions. Vibronic features accompanying the Rydberg series are mainly due to excitation of the C-I symmetric stretch and CH2 wag modes, with smaller contributions from the C-H symmetric stretch. The unusually high underlying intensity in parts of the VUV spectrum is attributed to valence states with high oscillator strength. This is the first report of a comprehensive VUV study of CH2I2 in the 6.2-10.5 eV region. The VUV absorption spectrum of CD2I2 which serves to verify and consolidate spectral assignments is also reported for the first time. (J. Chem. Phys. 2014)

Figure: Rydberg series observed in the VUV photoabsorption spectra of CH2I2 and CD2I2
Figure: Rydberg series observed in the VUV photoabsorption spectra of CH2I2 and CD2I2

2.Study of excited states of Aniline 3.75 - 11.5eV region

The photo-absorption spectrum of aniline (C6H5NH2) in 3.7-11.2 eV is recorded at a resolution of 0.008 eV for the first time to comprehend the nature of the excited valence and Rydberg states. The first half of the energy interval constitutes the richly structured valence transitions from the ground to excited states up to the first ionization potential (IP) at 8.02 eV. The spectrum in the second half consists of vibrational features up to second IP (9.12 eV) and structure less broad continuum up to the third IP (10.78 eV). The electronic states are assigned mainly to the singlets belonging to π -> π* transitions. A few weak initial members of Rydberg states arising from π-> 4s, np or nd transitions are assigned. Observed vibrational features are assigned to transitions from the ground state A' to the excited states 1A", 3A', 5A", 6A', and 10A" in C8 symmetry. Time dependent density functional theory calculations are employed to obtain the vertical excitation energies and the symmetries of the excited states in equilibrium configuration. The experimental and theoretical work carried out provides a comprehensive picture of the VUV photoabsorption spectrum of aniline up to the third ionization limit. (J. Chem. Phys. 2013)
Figure: Photo-absorption spectrum of aniline in the UV-VUV region
Figure: Photo-absorption spectrum of aniline in the UV-VUV region
Recent Upgrades
  • Beamline upgraded to improve step size resolution 0f 0.01Å, wavelength reproducibility of one step and a resolving power >2500.
  • Augmentation of low temperature facility with a FTIR spectrometer to study UV-VUV induced photochemical reaction products in molecules is in progress.
