Technology Available for Incubation

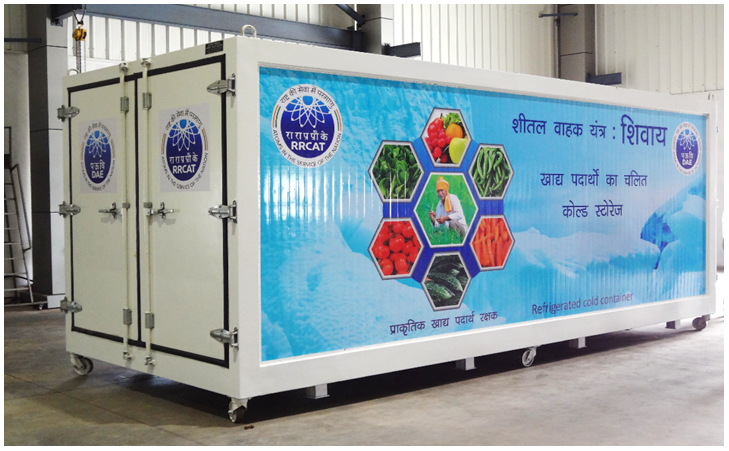

SHIVAY (Sheetal Vahak Yantra) -
Liquid Nitrogen Based Transportable Refrigeration System
Standalone, 20 feet full truck sized, refrigerated container
SPECIFICATIONS OF THE EXISTING SYSTEM
|
|
Prototype-I
|
Prototype-II
|
|
Size of Container
|
14 ft x 7 ft x 7 ft
|
20 ft x 8 ft x 8 ft
|
|
Available volume for storage
|
13 cubic meters
|
19 cubic meters
|
|
Loading Capacity (depending on the item)
|
4 - 5 Tons
|
6 - 7 Tons
|
|
LN2 storage tank capacity
|
230 litres
|
485 litres*
|
|
Control Temperature Range
|
-40 °C to + 20 °C
Continuous and programmable
|
|
Temperature Uniformity
|
± 1.5 °C ( inside the cargo chamber volume under steady state )
|
|
Temperature stability
|
± 1.5 °C (inside the cargo chamber volume under steady state conditions)
|
* This tank capacity is sufficient for transporting goods at a temperature of 4° for 40 hours. The performance would vary drastically with the type of goods, road conditions, weather, etc.
Salient feature of the Technology
- Minimal maintenance and minimal breakdown due to very few moving parts based technology.
- Possibility of incorporating Relative Humidity (RH) control.
- Availability of LN2: There are approximately 90 existing installations from diverse sources dispensing liquid O2 in the country, which are also capable of large scale dispensation of LN2.
For more details, please contact:
Dr. C. P. Paul
Convener
Phone: +91 731 248 8396
Mobile: +91 94256 66596
|
Sh. P. K. Agrawal
Co-convener
Phone: +91 731 248 2419
Mobile: +91 94258 31055
|
Coordination Committee for Incubation Center - RRCAT
Email: incubation[at]rrcat[dot]gov[dot]in
|
|
