Precision Power Supplies and Control Section (PPSCS)

1.Mandate

Development of special purpose power converters (AC-DC, DC-DC, Active Filters, Active Shunts, and high voltage pulsed power supplies of low to medium power ratings based on thyristorized phase control, switch mode conversion, soft switching and thyratron switching), digital control of power supplies and providing electrical support in Indus accelerator complex.

2.Team Members

Present team members are as follows:
  • Manoj Leelachand Gandhi
  • Seema Singhai Sheth
  • Aradhana Kumari
  • Ujjwal Yadav
  • Bonagiri Bhanuprakash
  • Anil Kumar
  • Ramesh Prasad
  • Vaddadi Ramesh
  • Lalit Biranwar
  • Gopi Kandipalli
  • Vinay Kumar Rajaram Maurya
  • Surya Prakash Sah
Other important team members who have contributed in the works described in this section are:
  • A C Thakurta
  • A P Thipsay
  • S N Singh
  • V D Sharma
  • Tribhuwan Singh
  • Ramesh Prasad
  • B K Mishra

3.Activities pursued in Precision Power Supplies and Control Section
  • 3.1.Design and development of power supplies for Transport Line-3 Quadrupole Magnets
  • 3.2.Design and development of Active Shunts for Indus-2 Quadrupole Magnets
  • 3.3.Design and development of Pulsed Power Supply for Electron Gun
  • 3.4.Design and development of Bipolar Power Supply for Variable Pole Gap Magnet
  • 3.5.Design and development of Line-side Active Harmonic Filter
  • 3.6.Design and development of Booster Quadrupole Magnet Adjustment Coil Power Supplies
  • 3.7.Digital Control of a Zero Voltage Switching Power Supply
  • 3.8.Design and development of DSP based supervisory control for the power supplies of Transport Line -1, Transport Line -2 and SR Indus-1
  • 3.9.Installation of Smoke Exhaust System for Indus-2 Experimental Hall
  • 3.10.Installation and maintenance of Fire Alarm and Detection System of Indus Accelerator Complex
  • 3.11.Installation of Public Address system in Indus Complex
  • 3.12.Design and development of Power Supply for Indus-2 Dipole Magnets
  • 3.13.Design and development of Power Supplies for Booster Horizontal Steering Coils
  • 3.14.Design and development of Field Mapping Power Supply
  • 3.15.Design and development of Power Supplies for Fast corrector Magnets of Indus-2
  • 3.16.Design and development of High Stability power supply
  • 3.17.Design and development of SCADA System for Remote Control and Monitoring of Vacuum Furnace
4.Detailed Work Description
  • 4.1. Design and development of power supplies for Transport Line-3 Quadrupole Magnets

    Features

    • Current controlled power supply
    • Regulation against - line and load variations
    • High Stability - Lower temperature drift and ripple
    • ZVS throughout the load range
    • Active damping of LC filter
    • High frequency transformer primary volt-sec balance
    • Reduced Switching losses and EMI
    • Water Cooling of power devices and major circuit components

  • Specifications:

    • Maximum current: 180 A at 45 V
    • Stability: ± 500 PPM
    • Load: L = 56 mH, R = 0.25 ohm

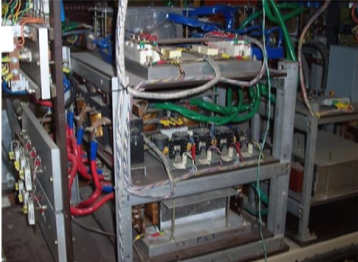

SCR Pre-regulator
Zero-Voltage-Switching IGBT Inverter
SCR Pre-regulator
Zero-Voltage-Switching IGBT Inverter
  • 4.2.Design and development of Active Shunts for Indus-2 Quadrupole Magnets

    Features

    • Bipolar current adjustment
    • Stability much better than ±500 PPM
    • Very low DC sensitivity to load-source disturbance
    • Utility interface supports bidirectional power flow
    • Near unity power factor operation in all quadrants
    • Low line-side current THD
    • Isolation of load when not in operation
    • Soft start and stop

  • Specifications:

    • Load voltage : ± 80 V
    • Load current : ± 6 A
    • Stability on flat portion : better than ± 500 PPM

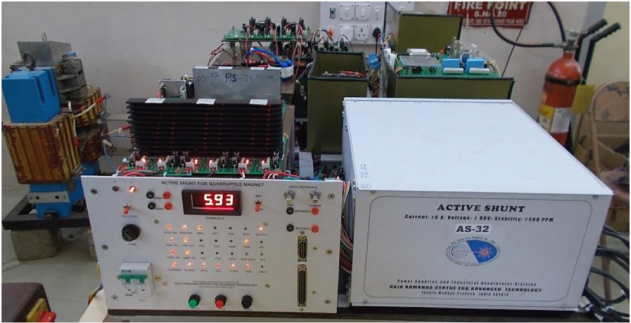

Active Shunt on a Test Bench
Active Shunt on a Test Bench
  • 4.3 Design and development of Pulsed Power Supply for Electron Gun

    The scheme uses a doubly tuned circuit and two thyratrons. In the implemented scheme, the maximum working voltage is equal to the load voltage reducing the safety requirements (as compared to PFN). Less number of components, simpler tuning, lower working voltage and hence the associated benefits in device and component ratings make this scheme attractive at the expense of loss of efficiency. There are three stages of the power supply. An AC to DC converter and then a doubly tuned circuit follow a switching circuit. The diode electron gun is coupled to the high voltage power supply through an oil immersed pulse transformer having ratio 1:5. The balanced arrangement of high voltage application to the gun offers minimum stray capacitive coupling to the earth via the filament transformer improving rise and fall times of the pulse.

    Specifications:

    • Voltage - 40 kV
    • Current - 0.5 A
    • Pulse Width - 2 μs
    • Rise and fall times < 325 ns
    • Pulse Top Flatness < 5 %
    • Repetition Rate - 1 Hz
    • Load - Electron Gun

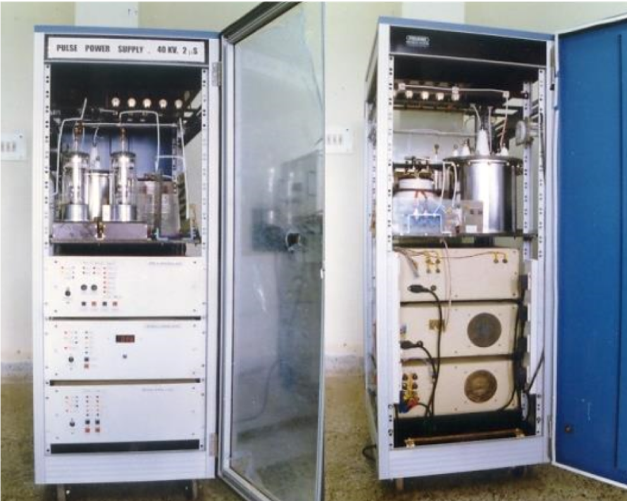

Electron gun pulser  used in PWT Linac development and testing in Beam Physics & Free Electron Laboratory
Electron gun pulser used in PWT Linac development and testing in Beam Physics & Free Electron Laboratory
  • 4.4. Design and Development of Bipolar Power Supply for Variable Pole Gap Magnet

    The power supply has a single phase diode rectifier with an LC filter at its front end followed by a half-bridge switch mode converter. The half-bridge converter, operating at 50 kHz, has full-bridge rectifier configuration at the output with an LC filter. A four-quadrant power converter based on Unipolar switching scheme is employed at the output stage. The scheme provides: 1) true bipolar output current with minimum switching ripple at lower amplitudes of load current, and 2) the voltage ripple frequency at twice the switching frequency reducing output filter size. The H-bridge switches at 50 kHz. The load current is sensed with a low temperature coefficient Zeranin shunt.

    Specifications:

    • Maximum DC load current ±15 A
    • Maximum DC load voltage ±50 V
    • Full scale stability ±100 PPM
    • Full scale ripple ±100 PPM
    • Inductive load time constant 0.66 - 2 s
    • Maximum load current di/dt 1 A/s

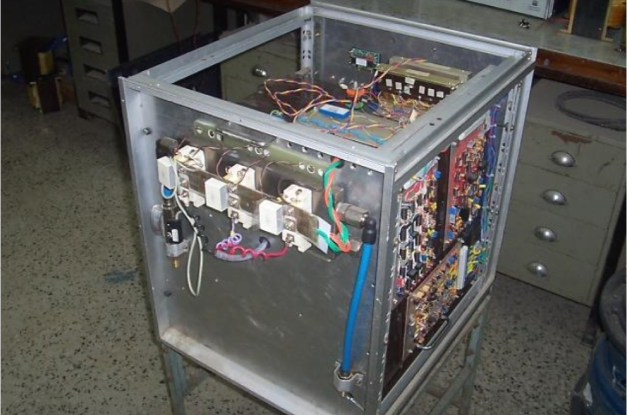

Bipolar Power Supply for Variable Pole Gap Magnet
Bipolar Power Supply for Variable Pole Gap Magnet
  • 4.5. Design and development of line-side Active Harmonic Filter

    A shunt filter topology using three phase IGBT Inverter is used. The active filter is connected to a harmonic producing load in parallel through coupling chokes. The filter capacitor is charged to dc voltage by operating the inverter bridge in rectification mode simultaneously. Due care is needed to be taken to control inrush current at the start up. The control scheme is such that the filter not only corrects the current harmonics but compensates reactive power thus improving overall power factor of the system.

    Specifications:

    • Three phase VSI Rating: 5 kVA
    • Load: TL-3 Quadrupole Magnet power supply having six-pulse SCR converter at its input.

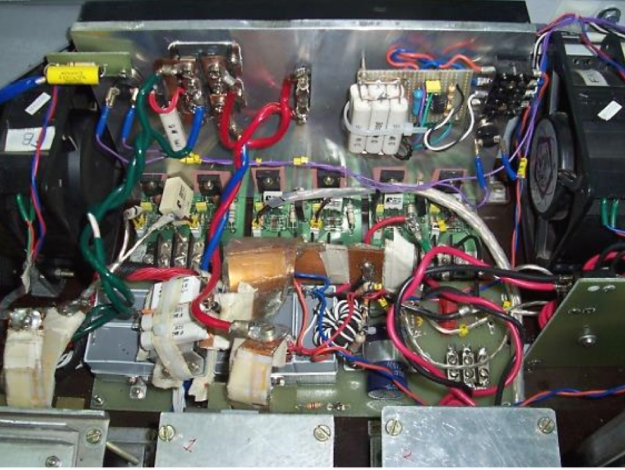

Active Harmonic Filter: Three Phase IGBT Switching Bridge
Active Harmonic Filter: Three Phase IGBT Switching Bridge
  • 4.6. Design and development of Booster Quadrupole Magnet Adjustment Coil Power Supply

    This current regulated power supply tracks a ramped current reference. Quadrupole magnet is magnetically coupled with dipole magnet. Under the excitation of ramping current through Dipole and Quadrupole magnets, power supply is required to take care of mutually and self-induced step voltages. To meet the step changing voltage requirements at the output, feed-forward control has been incorporated in the power supply. Load and line regulation are taken care by the fast voltage control loop whereas slow current loop tracks the current reference.

    Specifications:

    • 180 A, 50 V
    • Stability 500 PPM
    • Load Magnet (L - R)

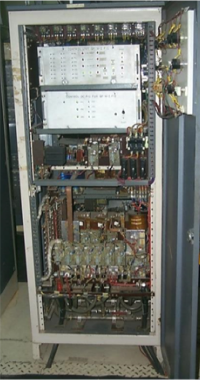

Booster Quadrupole Magnet Adjustment Coil Power Supplies
Booster Quadrupole Magnet Adjustment Coil Power Supplies
  • 4.7. Digital Control of a Zero Voltage Switching Power Supply

    Control Objectives:

    • Proper SCR firing angle control to avoid inrush current through the capacitor bank of the AC-DC converter at start-up
    • Output (dc bus) voltage regulation of the AC-DC converter
    • Active damping of L-C filter at the output of the AC-DC converter
    • Blocking of dc current through primary winding of the transformer used in the H-Bridge high frequency inverter
    • Active damping of L-C filter at the output stage of the DC-DC converter
    • Fast voltage loop control for the better rejection of input disturbances
    • A slow load current loop to track the current reference
    • Digital Implementation


    Hardware Interfacing:

    • Control Software
    • Generation SCR Firing Pulses and Manipulation of Firing Angle, and
    • Generation of Phase-Shifted PWM Signals for IGBTs


    Specifications:

    • Maximum current: 155 A at 19 V
    • Stability: ± 500 PPM
    • Load: L = 27 mH, R = 0.12 Ohm

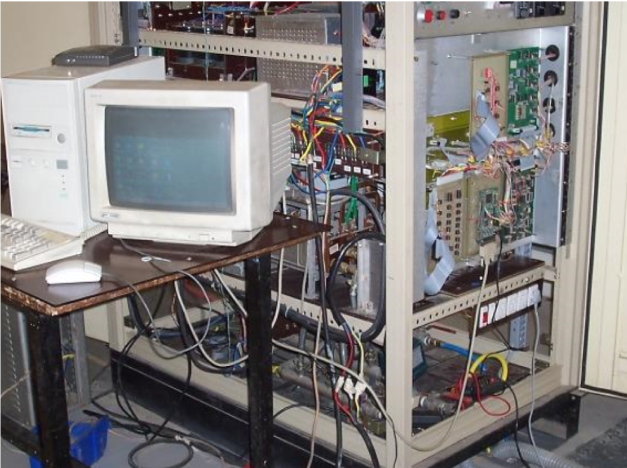

TMS320F2812 Controlled Current Regulated ZVS power supply (TL-3 QPM Spare)
TMS320F2812 Controlled Current Regulated ZVS power supply (TL-3 QPM Spare)
  • 4.8. Design and development of DSP based supervisory control for the power supplies of Transport Line -1, Transport Line -2 and SR Indus-1 (Work carried out by Smt Seema Singhai Sheth at ACSD)

    The supervisory control system for the Magnet Power Supplies of three sectors, namely, Transport Line -1, Transport Line -2 and Indus-1 SR are based on distributed control architecture. In this scheme each power supply is connected to a Digital Signal Processor (DSP) based controller sitting in its vicinity. All the controllers pertaining to one sector communicates to a master server on a common serial link, RS485 with a custom protocol. These controllers have high speed response and high accuracy. The controllers are very compact (in 19” width, 2U height form factor).

    Functions and features of the control system:

    • Digital control of seven parameters through potential free contacts.
    • Status monitoring of seven parameters through optically isolated digital inputs.
    • Setting and reading of the controller configuration.
    • Analog reference generation of any arbitrary shape required for generating reference profiles for setting power supply current.
    • Analog reference has accuracy better than 0.01% and stability better than 100 PPM.
    • Readback of actual current of the supply and the set reference with accuracy better than 0.01% at 10 kHz sampling rate.
    • Facilitate synchronized data capture following an external clock or events (for post-mortem analysis).

DSP based Control for magnet power supplies of TL-1, TL-2 and SR I-1 (Seema Singhai Sheth at ACSD)
DSP based Control for magnet power supplies of TL-1, TL-2 and SR I-1 (Seema Singhai Sheth at ACSD)
  • 4.9. Installation of Smoke Exhaust System for Indus-2 Experimental Hall

    A smoke exhaust system as per NFPA-92 standard has been installed in the Indus-2 experimental hall so that the safety of the personnel working in these areas is ensured in the event of fire and the loss of property can be minimized. The area of the hall has been divided into 16 zones covering 48 sectors. Each zone has a blower of 10000 m3/h capacity which receives smoke from a duct connected to six suction openings. There are thirteen direct driven blowers and three belt driven blowers which cater to the requirement of six air changes per hour as per the guidelines of CFPA-E.

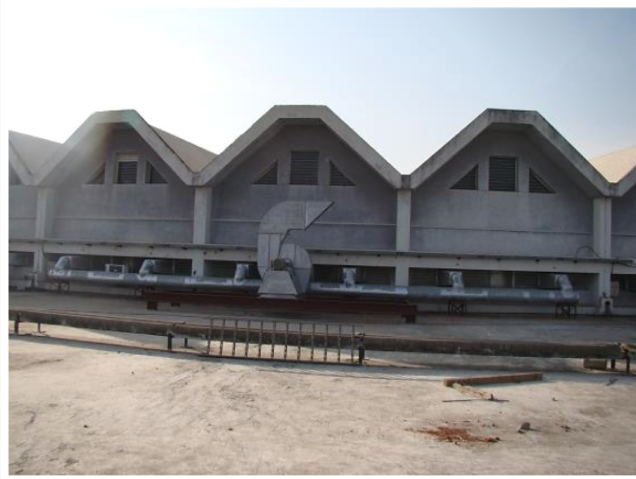

Smoke exhaust system covering three sectors of a zone with a direct driven blower; Smoke exhaust system covers 16 zone of Indus experimental hall.
Smoke exhaust system covering three sectors of a zone with a direct driven blower; Smoke exhaust system covers 16 zone of Indus experimental hall.
  • 4.10.Installation and maintenance Fire Alarm and Detection System of Indus Accelerator Complex

    A new 4th generation 100% hot redundant, intelligent addressable fire alarm and detection system of Schrack make has been installed in Indus Complex. The system uses multiple detectors in a loop and these are characterized by application algorithm. The new fire alarm and detection system consists of 3 control panels; each panel can have 10 loops. Each loop can accommodate maximum 127 numbers of devices. In presently configured system, each panel uses four loops. In all 1100 devices, like multi-criteria detectors (photoelectric smoke detector and heat detector), manual call points, panel mounted detectors, trench detectors, beam detectors, solar blind flame detectors, ventilation duct detectors, loop powered sounders, monitor modules, flashers, aspirating smoke detectors, etc., have been connected to the control panel through 10 loops. The system has 3 control panels, 5 Synoptic panels, and a colour Graphical User Interfaces software (GUI) installed at different locations including control room. All the three control panels, the virtual map and the synoptic panels are networked together, which facilitates us to know the status of the fire alarm system. All the devices in the system have inbuilt short circuit protection. This system has been installed as per NFPA 72-2016.

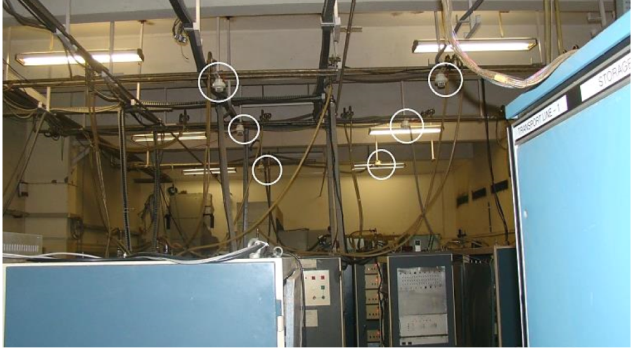

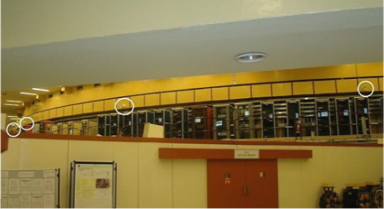

Installation of 4th generation Fire Alarm and Detector system in Indus accelerator complex. Pictures depict detectors, control panel and synoptic panel
Installation of 4th generation Fire Alarm and Detector system in Indus accelerator complex. Pictures depict detectors, control panel and synoptic panel
  • 4.11.Installation of Public Address System in Indus Complex

    PA system has been upgraded with paging mikes, priority controller, speaker loop line detector, power sequencer, audio splitter, audio amplifiers, one way and dual way projection speakers, wall speakers, column speakers, etc. Two Groups (A and B) catering the need of 14 zones spread over the entire Indus complex, based on the background noise ranging from 50 dBm to 88 dBm during machine operation, were defined to decide the exact power requirement of the amplifiers. Announcement can be made through telephones for Group-A, Group-B or for both. An emergency microphone kept in the control room has the highest priority. It is also possible to make announcements using telephone lines and two paging microphones located at the security posts. Provision for making recorded announcements from the control room has also been given. Speaker loop detectors have been placed for easy detection of faults in speaker circuits. The system has a controller to decide priority of the input audio signals. One way projection speakers are being used in 7 meter high experimental hall. Dual projection speaker are used in 2 to 3 meter wide corridors and wall speaker used in laboratories.
Components of the newly installed and commissioned Public Address System in Indus-2 Accelerator Complex
Components of the newly installed and commissioned Public Address System in Indus-2 Accelerator Complex
Components of the newly installed and commissioned Public Address System in Indus-2 Accelerator Complex
  • 4.12. Design and development of Power Supply for Indus-2 Dipole Magnets

    Seventeen dipole magnets, sixteen in Indus-2 ring and a reference dipole magnet in PS hall, are connected in series. All these magnets are energised by a single power supply. For this load, a 12-pulse thyristorized converter is used which operates in voltage control mode. The stringent stability specification of ±50 PPM is met by series pass regulator cascaded with the 12-pulse converter. The use of this series pass element allows higher control loop bandwidth compared to the SCR Bridge. The 12-pulse converter and Transistorised series pass regulator operate in series to supply regulated current to load.

    Features:

    • Current Controlled power supply
    • High load current long term stability (± 50 PPM)
    • 6-pulse SCR controlled pre regulator followed by Transistorised series pass regulator.
    • The SCR main bridge is 12-pulse converter which is operated in voltage control mode.
    • The 12-pulse converter and Transistorised series pass regulator operate in series to supply regulated current to load.
    • The series pass regulator operates in voltage and current control mode.
    • Major power components such as SCR, Chokes and power transistor are water-cooled
    • The power converter is fed by two AC mains source viz, 3-ph, 415V for 12-pulse converter and a separate 3-ph 415V for series-pass regulator.

    Specifications:

    • Max current : 800 A
    • Max voltage : 800 V
    • Load : 16 dipole and one reference magnet connected in series
    • Total load Inductance L : 1 H
    • Total load Resistance R : 1 ohm

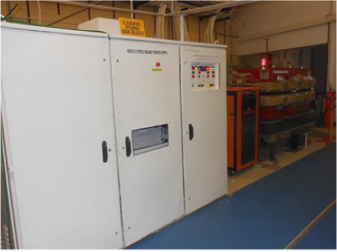

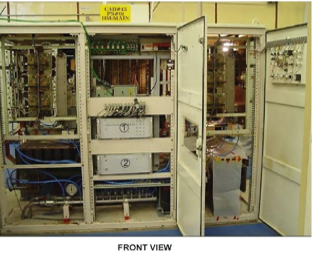

Power supply for Indus-2 Dipole magnets
Power supply for Indus-2 Dipole magnets
Power supply for Indus-2 Dipole magnets
  • 4.13.Design and development of Power Supplies for Booster Horizontal Steering Coils

    The horizontal steering coil power supplies are used for fine tuning of the beam orbit. 6 numbers of steering coils are on 6 Booster Dipole Magnets. It has a 12-pulse Diode Bridge followed by transistorised Class AB power Amplifier.

    Specifications:

    • Max Current : ±40 A
    • Max Voltage : ±40 V, -25 V
    • Load current long term stability : ±500 PPM
    • Load : Steering coil on Booster Dipole Magnets (6 nos.)

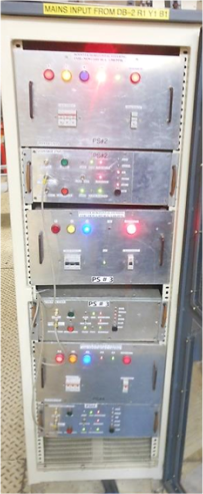

Booster Horizontal Steering coil Power Supplies
Booster Horizontal Steering coil Power Supplies
  • 4.14 Design and development of Field Mapping Power Supply

    A field mapping power supply is being used for characterising the various types of magnets. During the commissioning of Indus-2 this supply was used for field mapping of Dipole magnets.

    Features:

    • Current Controlled power supply
    • High load current long term stability (+/- 50 PPM)
    • SCR controlled pre regulator followed by Transistorised series pass regulator.
    • The SCR Bridge is 6-pulse converter in primary of 3-ph transformer is operated as pre regulator. The secondary of transformer is rectified by 12-pulse rectifier and followed by a transistorised series pass.
    • The series pass regulator operates in voltage and current control mode.
    • Major power components such as SCR, Chokes and power transistor are water-cooled
    • Max current: 900A
    • Max voltage: 60V
  • 4.15 Design and development of Power Supplies for Fast corrector Magnets of Indus-2

    To correct the beam orbit of Indus-2 against various disturbances of up to about 50 Hz, a Fast Orbit Feedback (FOFB) system is being developed. In this system, 80 corrector magnets are to be used in Indus-2 ring. Accordingly 80 power supplies are required to energize these magnets. 8 supplies are mounted in a rack. The 4 quadrant converter topology with MOSFET as switching device has been used. The load current bandwidth is 400 Hz. The load for these power supplies are air core magnets.

    Features:

    • Current Controlled power supply
    • High load current long term stability (± 50 PPM)
    • Power supply configuration: True bipolar 4 quadrant converter.
    • All the power components such as MOSFETs, Chokes and transformer are air cooled
    • Max current: ±15A
    • Max voltage: ±V
    • Load current small signal bandwidth: 400 Hz

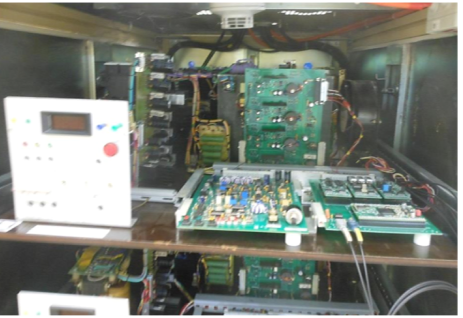

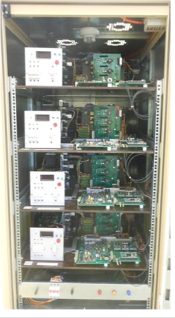

Power supplies for Fast Corrector Magnets required in Indus-2 for FOFB system
Power supplies for Fast Corrector Magnets required in Indus-2 for FOFB system
Power supplies for Fast Corrector Magnets required in Indus-2 for FOFB system
  • 4.16. Design and development of High Stability Power Supply

    A high stability digitally controlled current regulated power supply has been designed and developed to cater to the needs of the next generation high brilliance accelerators. Its control algorithm and communication interface has been implemented in DSP. The power circuit consists of a 3 phase diode rectifier, LC filter and an H-bridge switching converter. The output L-C filter is damped using passive components. The H-bridge which consists of MOSFETs as switching devices is switched at 50 kHz using unipolar switching scheme. The load current is sensed by a precision DCCT and digitized by 24-bit sigma-delta type ADC. The load voltage is digitised by 18-bit SAR type ADC. The control structure uses an outer current loop cascaded with the inner voltage loop. The observed load current stability of the power supply current is better than ± 2.5 μA/A over a period of 8 hours, while the current ripple is within ± 2 µA/A.
High Stability Power Supply
High Stability Power Supply


  • 4.17. Design and development of SCADA System for Remote Control and Monitoring of Vacuum Furnace

    A vacuum brazing facility (vacuum furnace) has been developed at RRCAT for joining aluminium alloys and making bimetallic joints between aluminium and austenitic stainless steel that are compatible with ultra-high vacuum requirements of particle accelerators. The vacuum brazing of aluminium alloys requires precisely control of heat cycles, accurate multi-point thermometry, ultra-clean vacuum, and a system for controlling and monitoring the heating process.

    A Supervisory Control and Data Acquisition (SCADA) system has been developed in the Accelerator Power Supplies Division to remotely program, supervise, control, and regulate heat cycles of the vacuum furnace up to 620°C. The SCADA system, follows a modular architecture comprising of a data acquisition system and Open Source Python based graphical user interface (GUI) running on the remote PC. Along with the development of the supervisory and control software, the closed loop PID control has also been implemented for control of the furnace temperature. To arrive at the proper PID coefficients, a systematic study was carried out on establishing the model of the furnace; wherein the highly temperature dependent parameters like thermal resistance and the system time constants around a few discrete points over the operating temperature range were found out.

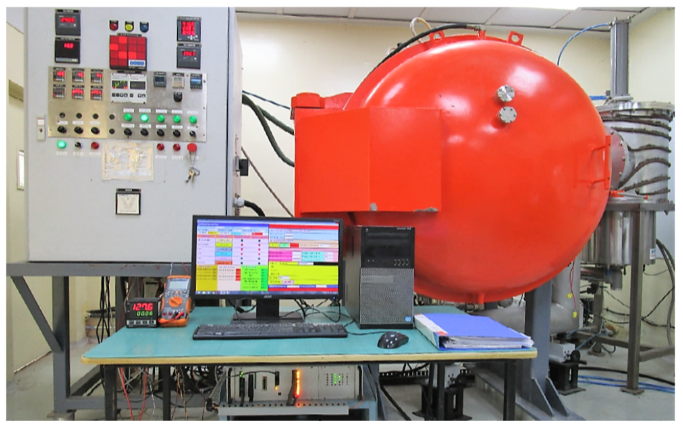

    SCADA system for vacuum furnace deployed at DMTD
    SCADA system for vacuum furnace deployed at DMTD

5. Publications
  • 5.1. Journals:

    1. Jena, Saroj Kumar, Husain Riyasat, Gandhi M. L., Agrawal R. K., Yadav S., and Ghodke A. D.,
      "Beam based alignment and its relevance in Indus-2,"
      Review of Scientific Instruments, 86, 093303 (2015), DOI:http://dx.doi.org/10.1063/1.4930277, September 18, 2015.

    2. Sheth S.S., Dipanjan Jana, Joshi O.P., Oak S.M.,
      "DSP-based Motion Control System."
      Journal of the Instrument Society of India, Vol. 38, no. 2, p. 137-144, Jun. 2008.

    3. Mahadevan S., Gandhi M. L., and Nandedkar R. V.,
      "A pulsed electron gun for the Plane Wave Transformer Linac,"
      in Nuclear Instruments and Methods in Physics Research Section A: Accelerators Spectrometers Detectors & Associated Equipment; Vol. 496, no. 1, January 2003,p. 26-32.

    4. Sheth S.S., Choudhary P. Nath A.K.,
      "Computer Numerical control system for two axes laser work-station."
      IETE Journal of Research, Vol. 49, no. 1, p. 59-66, Feb. 2003.

  • 5.2.Conferences / Symposiums:

    1. Seema Singhai Sheth, Lalit Biranwar, Manoj Leelachand Gandhi, Sanjeeva Ramteke, Abhay Kumar,
      “SCADA System for Remote Control and Monitoring of Vacuum Furnace for Aluminium Brazing,” Indian Particle Accelerator Conference, InPAC-2022; Variable Energy Cyclotron Centre, Kolkata, India, March 2022

    2. Ujjwal Yadav, H K Khatwani, Mangesh Borage, M L Gandhi, Sunil R Tiwari,
      “Experimental Comparison of Half-Bridge DC-DC Converter using Silicon and Silicon Carbide MOSFETs,” IEEE 10th National Power Electronics, Bhubneswar, India, December 2021, DOI: 10.1109/NPEC52100.2021.9672493,https://doi.org/10.1109/NPEC52100.2021.9672493

    3. H. K Khatwani, S. N. Singh, M. L. Gandhi1, R. Banwari1 and A. C. Thakurta,
      “Design and Development of Versatile and Modular Digital Control System for Power Converters of Accelerator,”
      in 9th Indian Particle Accelerator Conference, New Delhi, November 18-21, 2019.

    4. Anil kumar, H. K. Khatwani1, M. L. Gandhi1, V. D. Sharma1, R. Banwari1, and A. C. Thakurta,
      “Design, Installation and Commissioning of Smoke Exhaust System For Experimental Hall at Indus-2 Accelerator Complex,”
      in 9th Indian Particle Accelerator Conference, New Delhi, November 18-21, 2019.

    5. Aradhana Kumari, M. L. Gandhi, and A. C. Thakurta,
      “Development of Methodology for Qualification of Per-Formance of Active Shunts during their Mass Production,”
      in 9th Indian Particle Accelerator Conference, New Delhi, November 18-21, 2019.

    6. A. Kumari, M. L. Gandhi, L. Srinivas, A. C. Thakurta,
      "Development of Active Shunts for Quadrupole Magnets and their Production Status; and their Role in Indus-2,"
      Proceedings of the 8th Indian Particle Accelerator Conference – 2018.

    7. H. K. Khatwani, M. L. Gandhi, S. N. Singh, A. C. Thakurta,
      Design and Implementation of a Digitally Controlled High Stability Power Supply for Accelerator Magnets,"
      Proceedings of the 8th Indian Particle Accelerator Conference – 2018

      .
    8. Gandhi M. L., Srinivas L., and Thakurta A. C.,
      "Bipolar active shunt with bidirectional utility interface for the quadrupole magnets of Indus-2,"
      in 9th IEEE International Conference on Industrial and Information Systems (ICIIS), Gwalior, December 15-17, 2014.

    9. Singh S. N., Singh T. N., Khatwani H. K., Gandhi M. L., and Thakurta A. C.,
      "Fast Corrector Magnet Power Supplies for Indus-2,"
      in Indian Particle Accelerator Conference, VECC, Kolkata, November 19-22, 2013.

    10. Srinivas L., Pandey R. M., Yadav R. P., Gupta S., Gandhi M. L., and Thakurta A. C.,
      "Automation of Secondary Loop Operation in Indus-2 LCW Plant,"
      in Indian Particle Accelerator Conference, VECC, Kolkata, November 19-22, 2013.

    11. Kak Ajay, Kher A., Vishwakarma S. C., Kumar Abhay, Gandhi M. L., Radheshyam Pramod, and Lala Abhinandan,
      "Fabrication of a Ultra High Vacuum compatible Faraday Cup for qualification of Electron Gun for 10 kW industrial LINAC,"
      in Proc. of International Symposium on Vacuum Science & Technology and Its Application for Accelerators, Kolkata, February 15-17, 2012.

    12. Gandhi M. L., and Thakurta A. C.,
      "High stability bipolar current power supply for a variable pole gap dipole magnet,"
      in Indian Particle Accelerator Conference - 2009 (InPAC-09), RRCAT, Indore, February 10-13, 2009.

    13. Gandhi M. L., and Thakurta A. C.,
      "Power Quality Performance of an Active Harmonic Filter with a Power Converter Feeding Magnet Load"
      in Third IEEE International Conference on Industrial and Information, IIT Kharagpur, December 8-10, 2008.

    14. Karandikar U. S., Singh Y., Gandhi M. L., Thakurta A. C., and Kotaiah S.,
      "Current control mode fly-back as CCPS,"
      in Indian Particle Accelerator Conference - 2006 (InPAC-06), Mumbai,

    15. A Kumari, M. L. Gandhi, L Srinivas, A C Thakurta,
      "Development of Active Shunts for Quadrupole Magnets and their Production Status; and their Role in Indus-2,"
      Proceedings of the 8th Indian Particle Accelerator Conference – 2018. November 1-4, 2006.

    16. Gandhi M. L., Singh S. N., Thakurta A. C., and Kotaiah S., "Performance of A DSP based phase-shifted PWM controlled, zero-voltage-switching direct-current regulated magnet power supply,"
      in IEEE Power India Conference, New Delhi, India, April 10-12, 2006, p. 191-197.

    17. Singh S. N., Gandhi M. L., and Kotaiah S,
      "Digital Control of Quadrupole Magnet Power Supply using TMS320F2812 DSP,"
      in SEBTA 2005, Mumbai, September, 28-30, 2005.

    18. Gandhi M. L., Thakurta A. C., and Karandikar U. S.,
      "Mitigation of Stability Problems of Pulsers For Injection Kicker Magnets of Indus-II,"
      in Indian Particle Accelerator Conference - 2005 (InPAC-05), VECC, Kolkata, March 1-5, 2005, p. 447-448.

    19. Gandhi M. L., Thakurta A. C., and Kotaiah S.,
      "Power Supplies for Transport Line - 3 Quadrupole Magnets,"
      in Indian Particle Accelerator Conference - 2003 (InPAC-03), CAT, Indore, February 3-6, 2003, p. 404-406.

    20. Mahadevan S., Gandhi M. L., and Nandedkar R.V.,
      "Design and fabrication of a Pulsed Diode Electron Gun,"
      in Indian Particle Accelerator Conference - 2003 (InPAC-03), CAT, Indore, February 3-6, 2003, p. 299-300.

    21. Tiwari S. R., Thakurta A. C., Thipsay A. P., Pagare A., Gandhi M. L., Singh T., Singh S., and Kotaiah S., "Power Supplies for Indus-1,"
      in Asian Particle Accelerator Conference - 1998 (APAC-98), Tsukuba, Japan, March 23-27, 1998.

    22. Sheth S.S., Sheth Y.M., Fakhri A.A., Prajapati S.K., Baxy D.
      "Nonlinear Reference Profile Generator for Quadrupole Supplies of Booster Synchrotron"
      Indian Particle Accelerator Conference , Indore, Jan., 9-12, 2018.

    23. Sheth S.S., Sheth Y.M.*, Kumar S., Satheesan T.V., Francis A., Fatnani P., Navathe C.P. ,
      "Power Supply Control Module for Magnet Power Supplies Control System of Indus-1"
      Indian Particle Accelerator Conference , VECC, Kolkata, Nov., 19-22, 2013

    24. Sheth S.S., Joshi O.P., Oak S.M.,
      "DSP based Embedded PMDC servo motor drive for Laser Material Processing"
      National laser symposium , Baroda, Dec., 17 - 20, 2007

    25. Sheth S.S., Joshi O.P.,
      "Nath A.K.Control system for five axes Laser Robot"
      National Symposium on Instrumentation- 30 , Cochin, Nov 30 - Dec 2 , 2005

    26. Sheth S.S., Joshi O.P., Gupta C., Nath A.K. ,
      "Permanent magnet DC servo motor based speed and position controller for laser material processing"
      National Laser Symposium - 2003, IIT, Kharagpur, Dec., 22-24, 2003

    27. Sheth S.S., Bhargava P., Joshi O.P., Nath A.K.,
      "Computer Numerical Control System For Three Axes Work-Station"
      National laser symposium , Indore, Dec., 19-21, 2001

    28. Sheth S.S., Paul C.P., Joshi O.P., Nath A.K.,
      "Embedded motion control system with pulse width modulated stepper motor drives for laser based rapid prototyping"
      National laser symposium , Indore, Dec., 19-21, 2001


  • 5.3.RRCAT Newsletter:

    1. M. L. Gandhi, and Lingam Srinivas,
      "Active shunt for Indus-2 quadrupole magnet for beam based alignment study,"
      in RRCAT Newsletter, A6, Volume 28, Issue 2, 2015.

    2. Seema Singhai Sheth and P. Fatnani
      "New Control System for Magnet Power Supplies of Transport Line-l of Indus-1"
      RRCAT Newsletter, A12, Volume 26, Issue 2, 2013.

    3. Seema Singhai Sheth, Yogendra Sheth and P. Fatnani
      "New control system for magnet power supplies of Booster Synchrotron"
      RRCAT Newsletter, A2, Volume 29, Issue 2, 2016.
Best viewed in 1024x768 resolution
